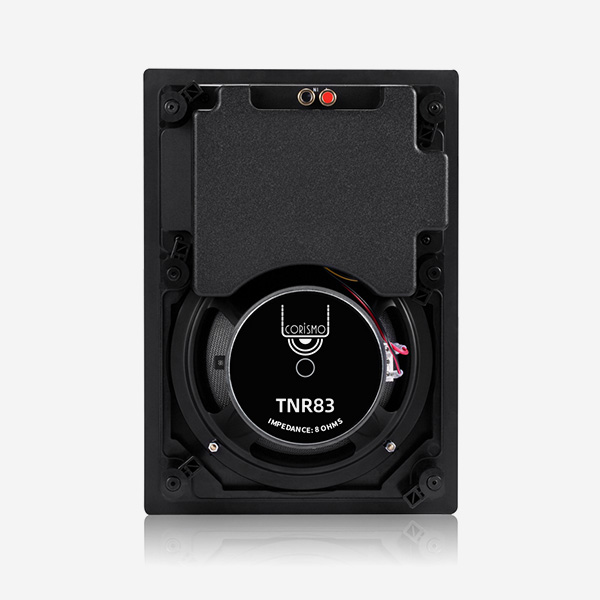

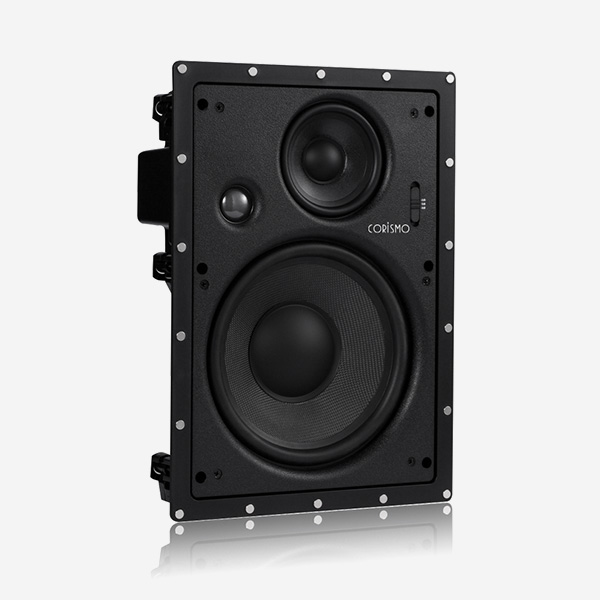

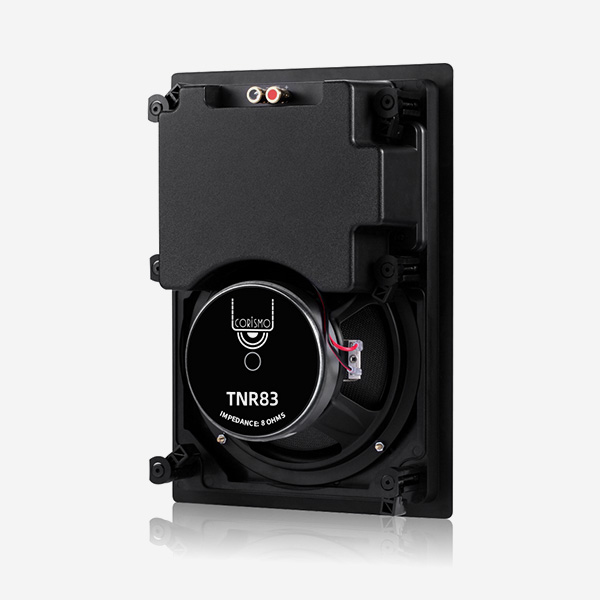

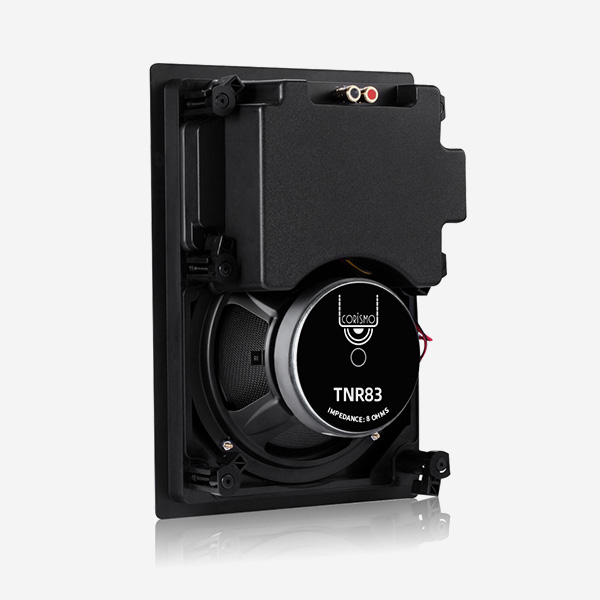

「 TNR83 」
-
3-way design
silk dome tweeter / Kevlar cone midrange / Kevlar cone woofer -
Tweeter
1xΦ25mm -
Midrange/Woofer
1x4”midrange / 1x8”woofer -
Sensitivity
92dB ±3dB -
Impedance
8ohm -
Recommended amplifier power
100W -
Frequency range
50Hz - 20kHz -
Special application
High frequency controller +3 / 0 / -3 dB -
Dimensions(LxWxD)
360.9 x 258.4 x 103mm -
Mounting dimensions(LxWxD)
327 x 225 x 96mm -
Weight
4.0kg
Neutral, soft-white finished frame and fine perforated grille blends imperceptibly into any room’s wall surface.
Every spot in your home has a unique high frequency (HF) profile, our crossover designs allow specially tailored HF attenuation to mitigate harsh room response. With 0dB(flat), -3dB, and +3dB settings you get simple room correction at the source.
